Porsche

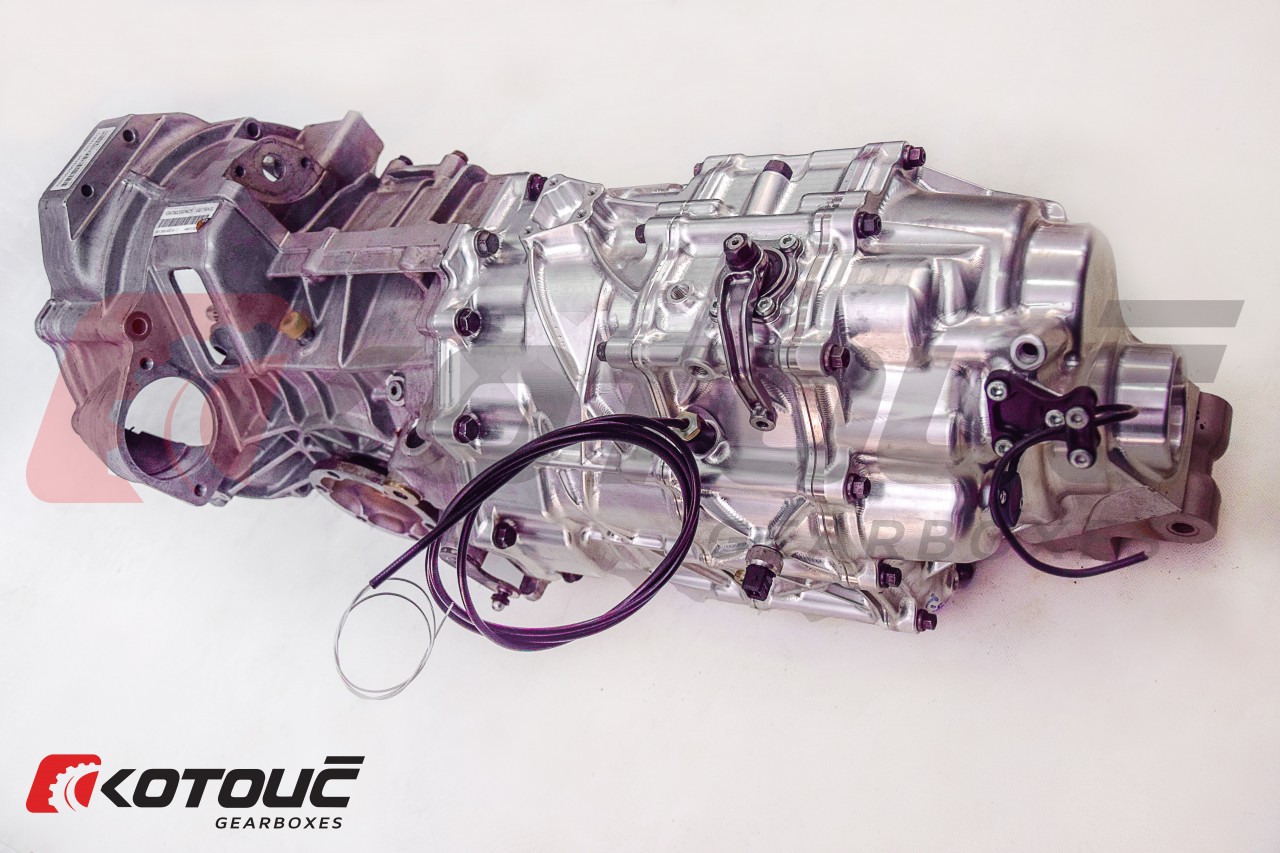

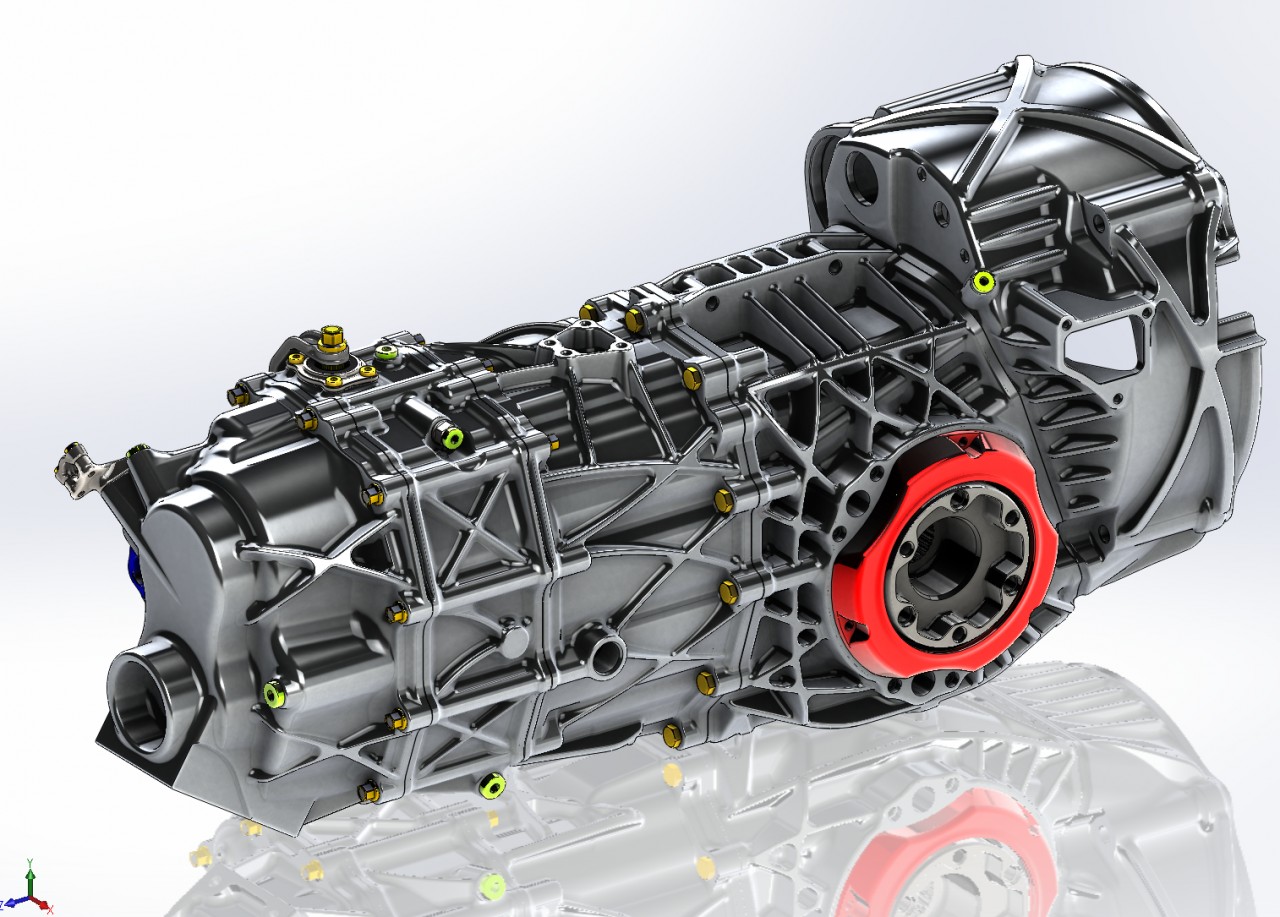

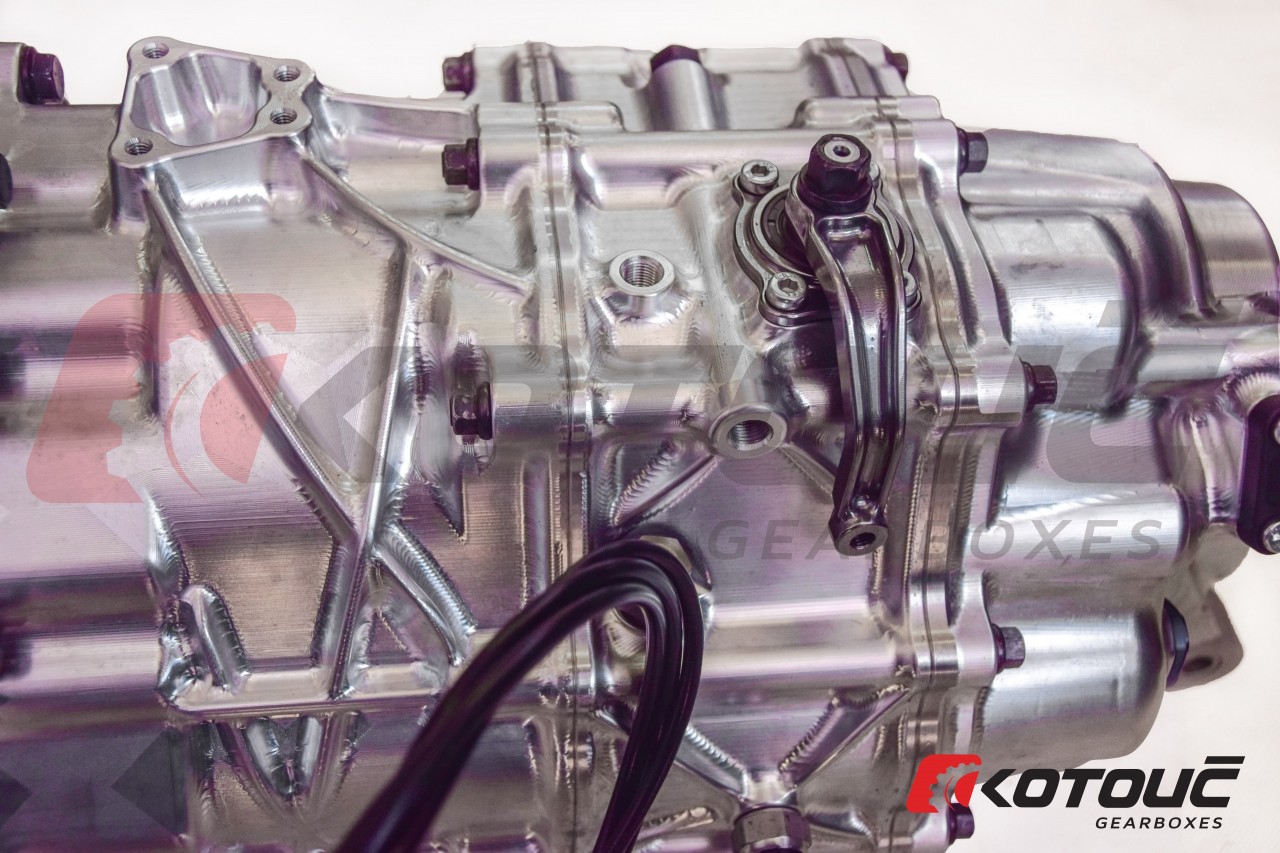

Porsche PS7-GT Sequential Gearbox

7 speed

Kit includes

  • Bilet aircraft grade aluminium main and rear casing

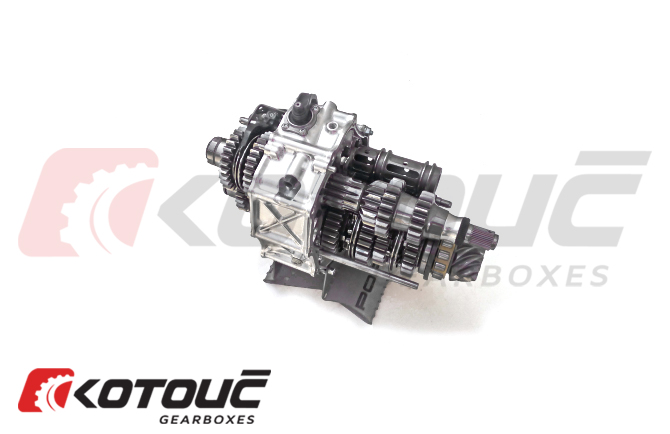

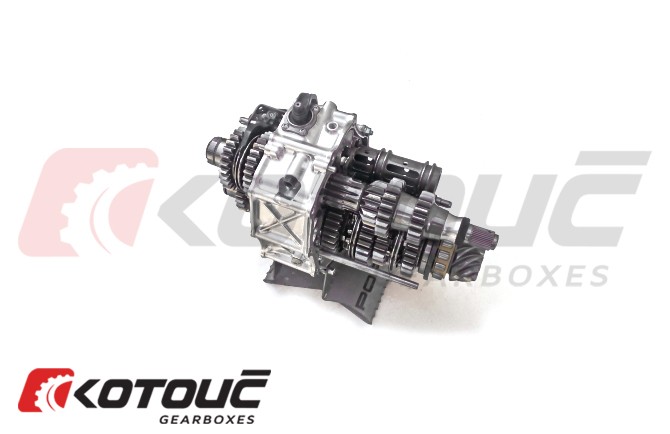

  • Complete Sequential Mechanism with Dog engagement
  • Input and Output Shafts
  • Gears 1st-7th
  • Shifting Forks
  • Shifting Rods
  • Complete Bearing and Needle Bearing set
  • Gear Position Indicator Sensor
  • Internal Hydraulic Shifting Piston
  • Internal oil pump
  • Oil Inlet / Outlet for external cooler
  • Position for oil temperature sensor
Contact us

Gearbox type

Sekvenční 7 rychlostí

Torque rating

800 Nm

Our advantages

The PS7-GT 7 SPEED Full Sequential Gearbox incorporates the Kotouč Gearboxes patented dogring technology for short, smooth and quick gear changes. Flatshifting of gears in as little as 40 milliseconds.

Thanks to innovative engineering, the gearbox can be used with original driveshafts, clutch and mounts without any modifications. It utilises the original Porsche clutch case so that installation is swift and costs are extremely reduced.

The gearbox contains an internal oil pump allowing for universal compatibility with any oil cooling system. Additionally, there is the option for installation of an oil temperature sensor.

The PS7-GT is available in a variety of ratios! Whether you are needing a short close ratio gearbox, Porche cup ratio or a top speed breaker, we can provide the right solution

  • Application: Porsche GT2, GT3
  • Gearbox Type: 7 speed full sequential gearbox
  • Kit Weight:
  • Max torque: 800NM
  • Gear shift layout: R-N-1-2-3-4-5-6-7-R-N-1-2...
  • Tooth Profile: straight cut


Gear ratios available

Porsche PS7-GT Sequential V1

GEAR Tooth count GEAR
ratio
output input
1st 37t 12t 3,08
2nd 29t 12t 2,42
3rd 26t 13t 2,00
4th 29t 17t 1,71
5th 25t 17t 1,47
6th 23t 18t 1,28
7th 27t 24t 1,13

Porsche PS7-GT Sequential V2

GEAR Tooth count GEAR
ratio
output input
1st 37t 12t 3,08
2nd 29t 12t 2,42
3rd 29t 15t 1,93
4th 29t 18t 1,61
5th 26t 19t 1,37
6th 21t 18t 1,17
7th 24t 24t 1,10

Porsche PS7-GT Sequential V3

GEAR Tooth count GEAR
ratio
output input
1st 37t 12t 3,08
2nd 29t 13t 2,23
3rd 28t 16t 1,75
4th 27t 19t 1,42
5th 24t 20t 1,20
6th 25t 24t 1,04
7th 22t 24t 0,92

Porsche PS7-GT Sequential V4

GEAR Tooth count GEAR
ratio
output input
1st 37t 12t 3,08
2nd 28t 14t 2,00
3rd 28t 19t 1,47
4th 22t 19t 1,16
5th 24t 25t 0,96
6th 19t 23t 0,83
7th 21t 29t 0,72
