Mitsubishi

Mitsubishi Dogbox kit Evo VI-IX

5 speed Gp N or open ratio

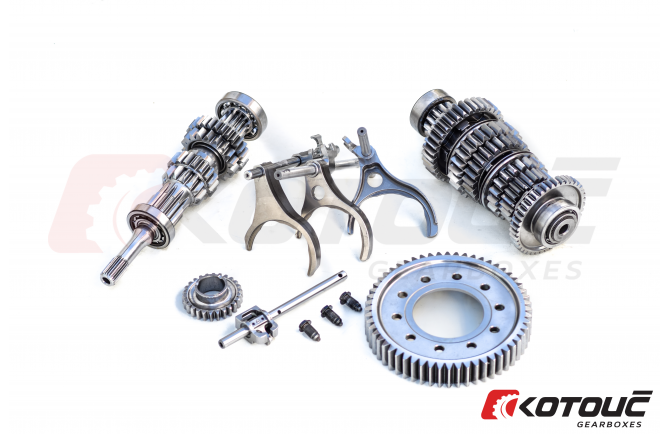

Kit includes

  • Input Shaft
  • Output Shaft
  • 1st – 5th Gears with dog rings
  • Final Drive
  • Selector Rods and Forks
  • Interlocking System
  • Aretation Bolts
  • Full Bearings and Needle Roller Bearings
  • Kit is supplied in assembly position for easy installation into the gearbox without modification
  • FIA Homologated for group N
Contact us

Our advantages

The Mitsubishi dogkit from Kotouč Gearboxes is the ultimate in performance. Compared to other brands, this Evo IX dogkit contains many more parts inside, making it the strongest available on the market. Every single millimeter of avalable space has been used to incorporate the straight cut wider and larger gears. Combine this with the upgraded dogring technology, the Evo IX dogkit becomes the fastest and smoothest shifting possible. Whether for tuning or racing, the Kotouč Gearboxes Evo IX dogkit is perfect upgrade for all applications.

  • REVOLUTIONARY dog ring technology
  • WIDER and STRONGER STRAIGHT CUT gears
  • UNBREAKABLE High strength shift rods
  • Latest HEAT TREATMENT and CRYOGENIC technology processes
  • Every part is coded for easy identification
Kit is supplied in assembly position for easy installation into the original Mitsubishi casing.

ISOTROPIC SUPER FINISHING on all parts!

read more

Gear ratios available

Mitsubishi dogkit 5 speed 4.31

GEAR Tooth count GEAR
ratio
output input
1st 36t 12t 3,00
2nd 26t 13t 2,00
3rd 25t 17t 1,47
4th 20t 18t 1,11
5th 24t 28t 0,85
