Audi Quattro S1 / S2 - 01E replacement

6 speed

Kit includes

  • Supplied with Subaru R4 sequential gearbox kit
  • Gearbox flange
  • CV joints
  • Rear flange
  • Conversion gears
  • Special 2 piece input shaft
  • Clutch bearing holder if required
Contact us

Gearbox type

6 speed sequential

Kit weight

76 Kg

Torque rating

750 ft lbs / 1000 Nm

Our advantages

IT IS HERE! Built for performance! Built for you!!

The Audi S1 Sequential gearbox is the product that Audi quattro drivers have been waiting for all these years! With a torque rating over 1000NM, there is no product close to matching the craftsmanship that Kotouc Gearboxes can deliver.

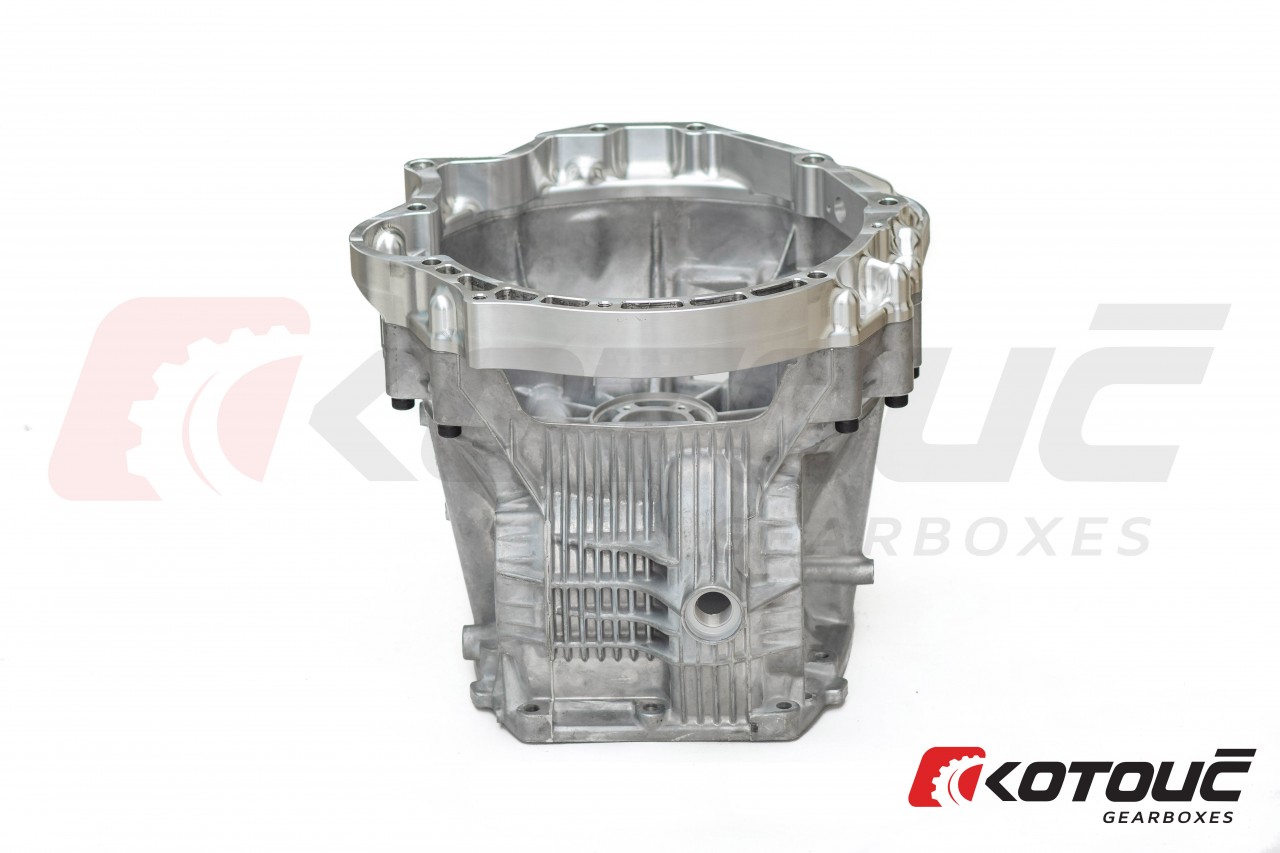

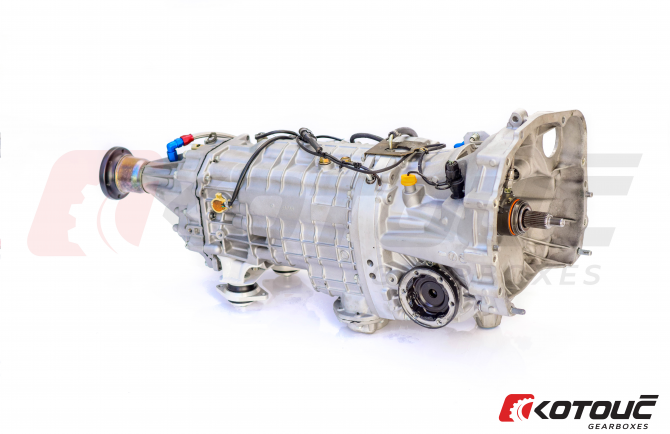

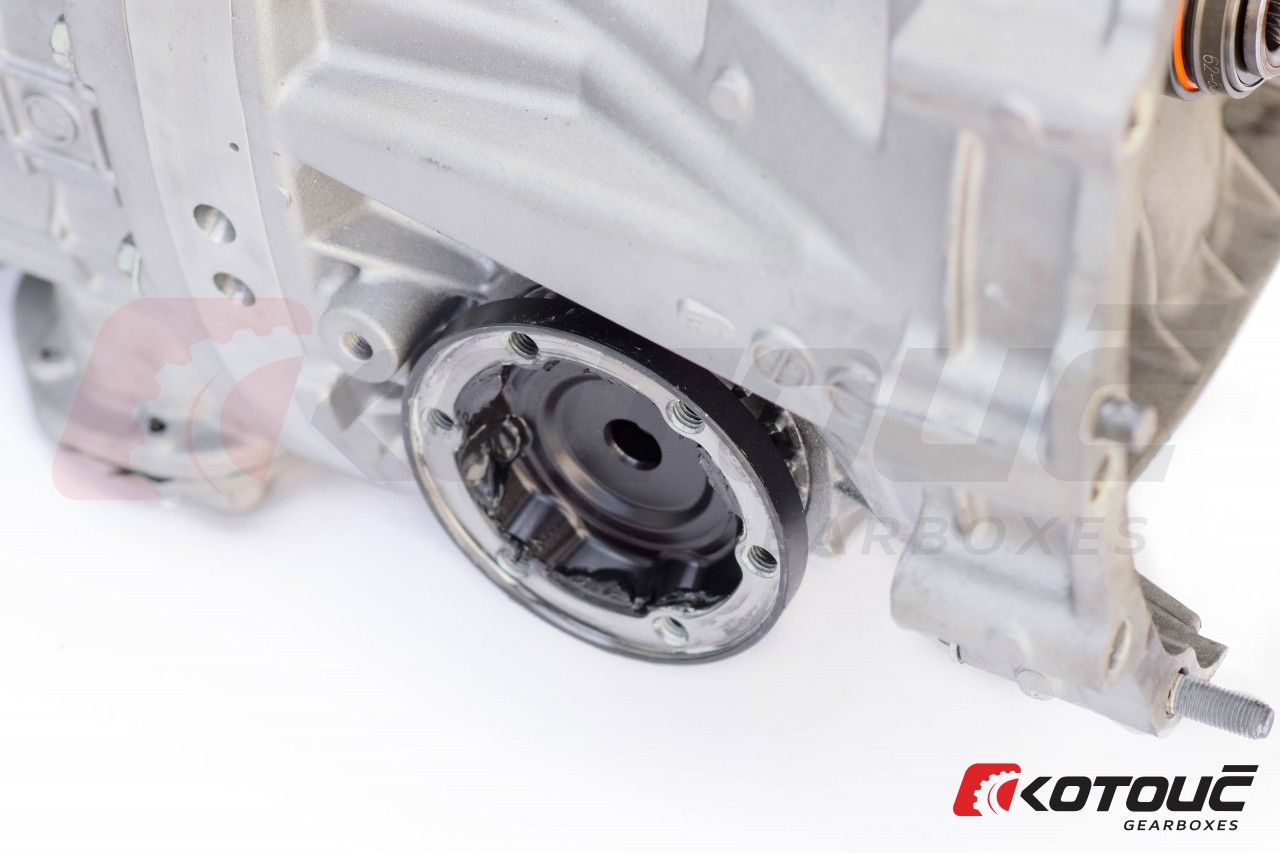

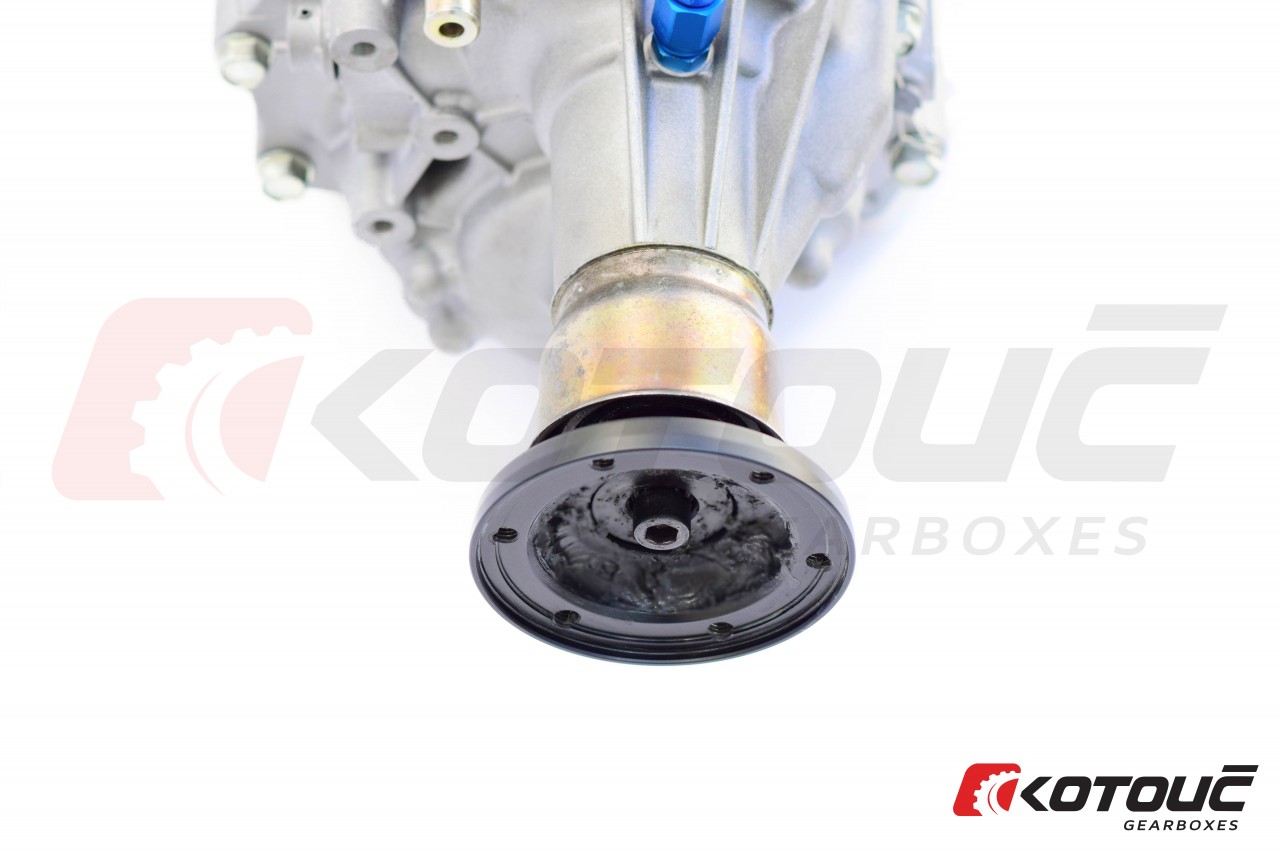

The original Audi 01E gearbox is replaced with the beefed up Subaru STI 6 speed gearbox. Installed into the STI casing is the Kotouc Gearboxes R4 sequential gearbox kit, and additionally supplied is the engine flange, axle CV joints as well as the rear output flange so that the original components can assemble. Specialist drop gears are also suppled with a new ratio.

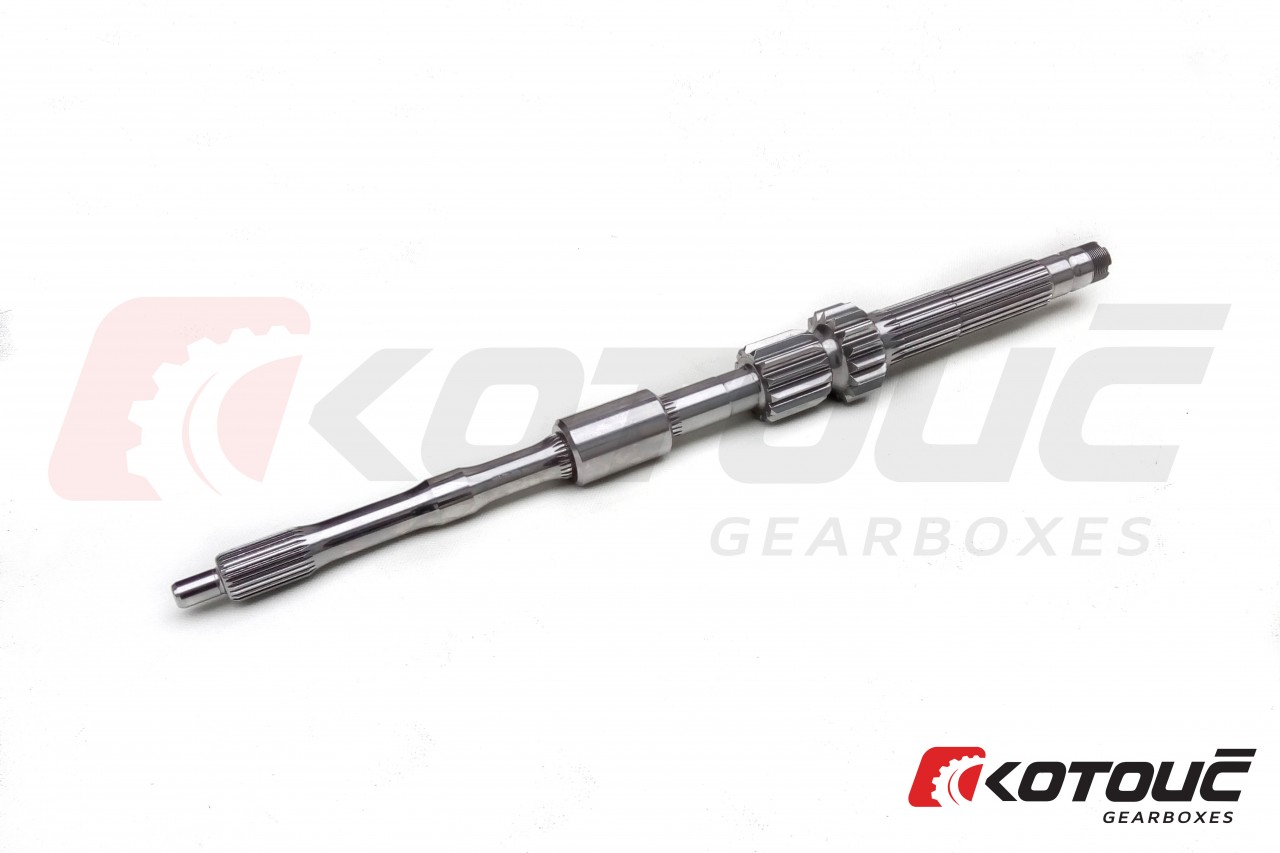

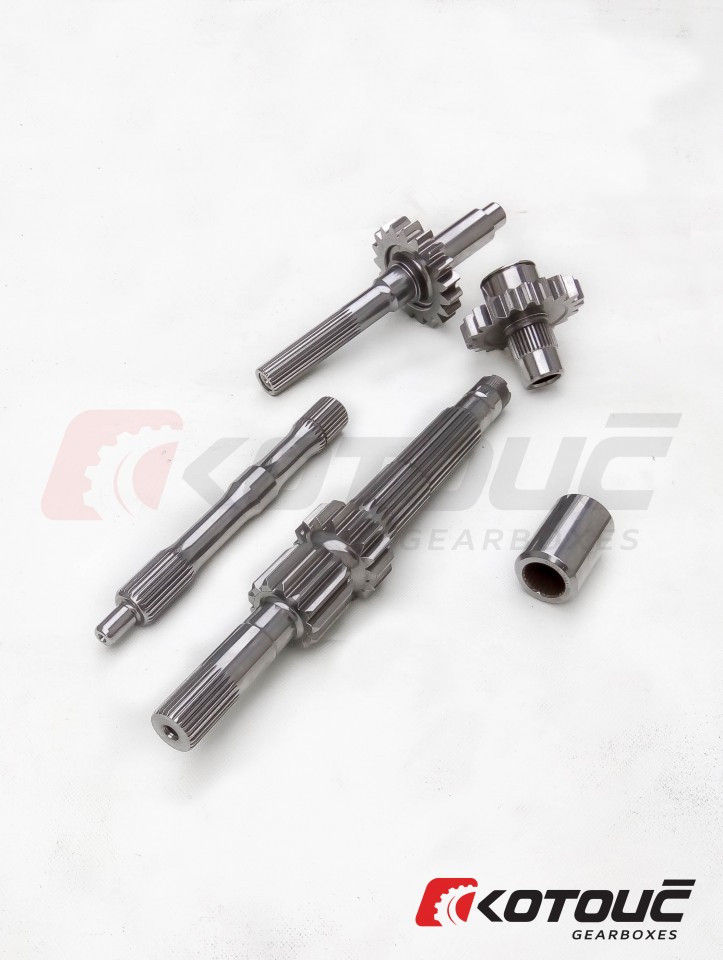

To suit the Audi clutch, supplied is an uprated input shaft that is produced in 2 pieces which aids installation.

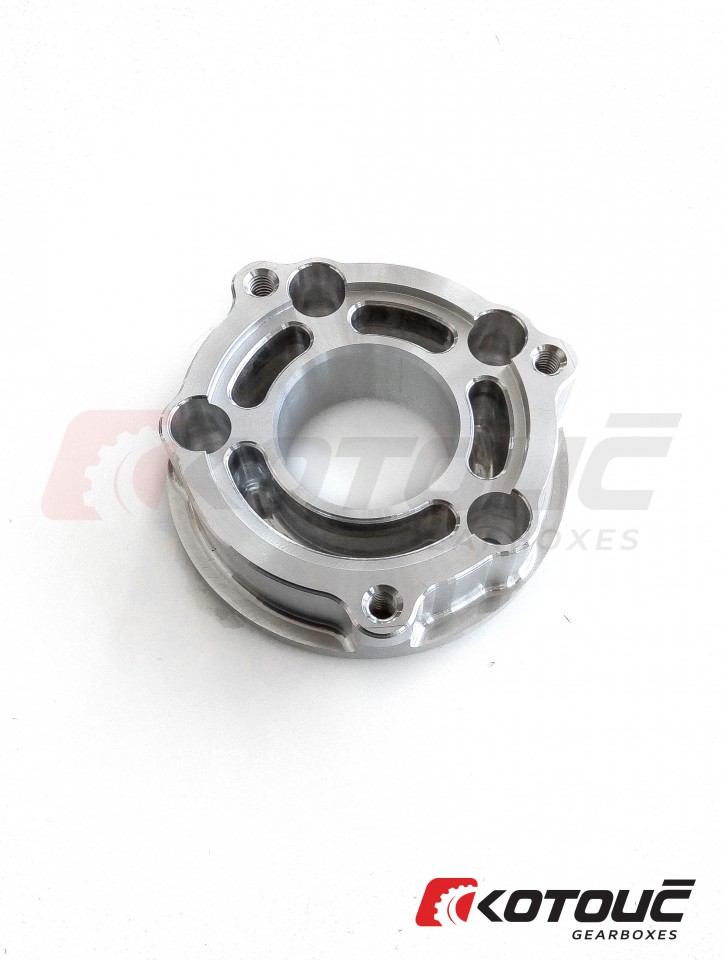

Kotouc Gearboxes has also produced a holder for the Tilton hydraulic clutch release bearing which is quite a common upgrade amongst the Audi community.

Many thanks to Rene, Klaus and Karl.

All parts are ISOTROPIC SUPERFINISHED!

Gear ratios available

Audi S1 Sequential 6 Speed P1

GEAR Tooth count GEAR
ratio
output input
1st 40t 12t 3,33
2nd 31t 13t 2,38
3rd 27t 15t 1,80
4th 24t 17t 1,41
5th 24t 21t 1,14
6th 18t 19t 0,95

Audi S1 Sequential 6 Speed P2

GEAR Tooth count GEAR
ratio
output input
1st 40t 12t 3,33
2nd 31t 13t 2,38
3rd 27t 15t 1,80
4th 26t 19t 1,37
5th 19t 18t 1,06
6th 21t 25t 0,84

Audi S1 Sequential6 Speed P3

GEAR Tooth count GEAR
ratio
output input
1st 40t 12t 3,33
2nd 30t 14t 2,14
3rd 27t 17t 1,59
4th 24t 19t 1,26
5th 21t 20t 1,05
6th 18t 20t 0,90

Audi S1 Sequential 6 Speed P4

GEAR Tooth count GEAR
ratio
output input
1st 38t 13t 2,92
2nd 33t 16t 2,06
3rd 28t 18t 1,56
4th 28t 23t 1,22
5th 21t 21t 1,00
6th 21t 25t 0,84

Audi S1 Sequential 6 Speed P5

GEAR Tooth count GEAR
ratio
output input
1st 38t 13t 2,92
2nd 33t 16t 2,06
3rd 28t 19t 1,47
4th 24t 22t 1,09
5th 19t 23t 0,83
6th 18t 28t 0,64

Audi S1 Sequential 5 speed P6

GEAR Tooth count GEAR
ratio
output input
1st 40t 12t 3,33
2nd 31t 13t 2,38
3rd 28t 16t 1,75
4th 24t 18t 1,33
5th 26t 25t 1,04

Audi S1 Sequential 6 Speed P7

GEAR Tooth count GEAR
ratio
output input
1st 40t 12t 3,33
2nd 31t 13t 2,38
3rd 28t 15t 1,87
4th 26t 17t 1,53
5th 23t 18t 1,28
6th 24t 22t 1,09
