 Volkswagen / Seat / Audi / KTM / Škoda

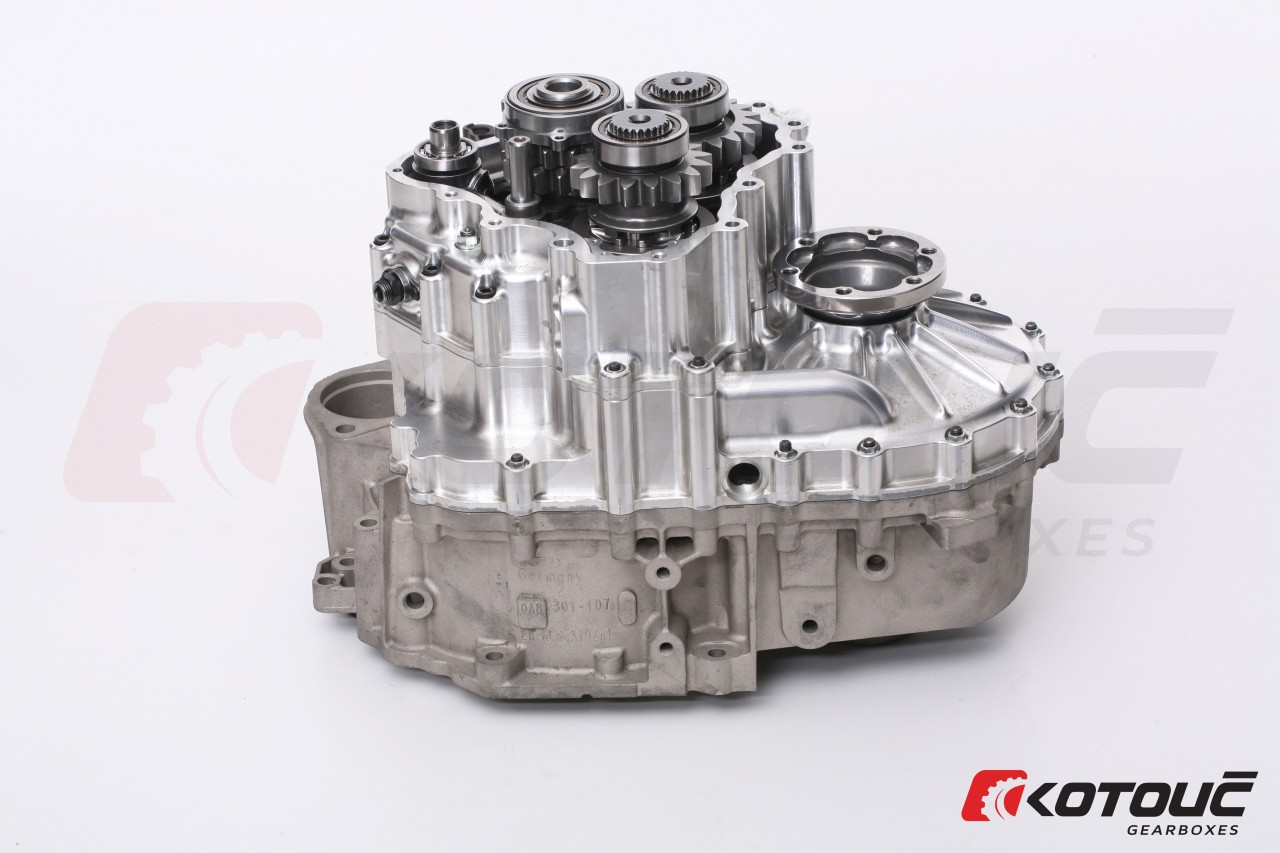

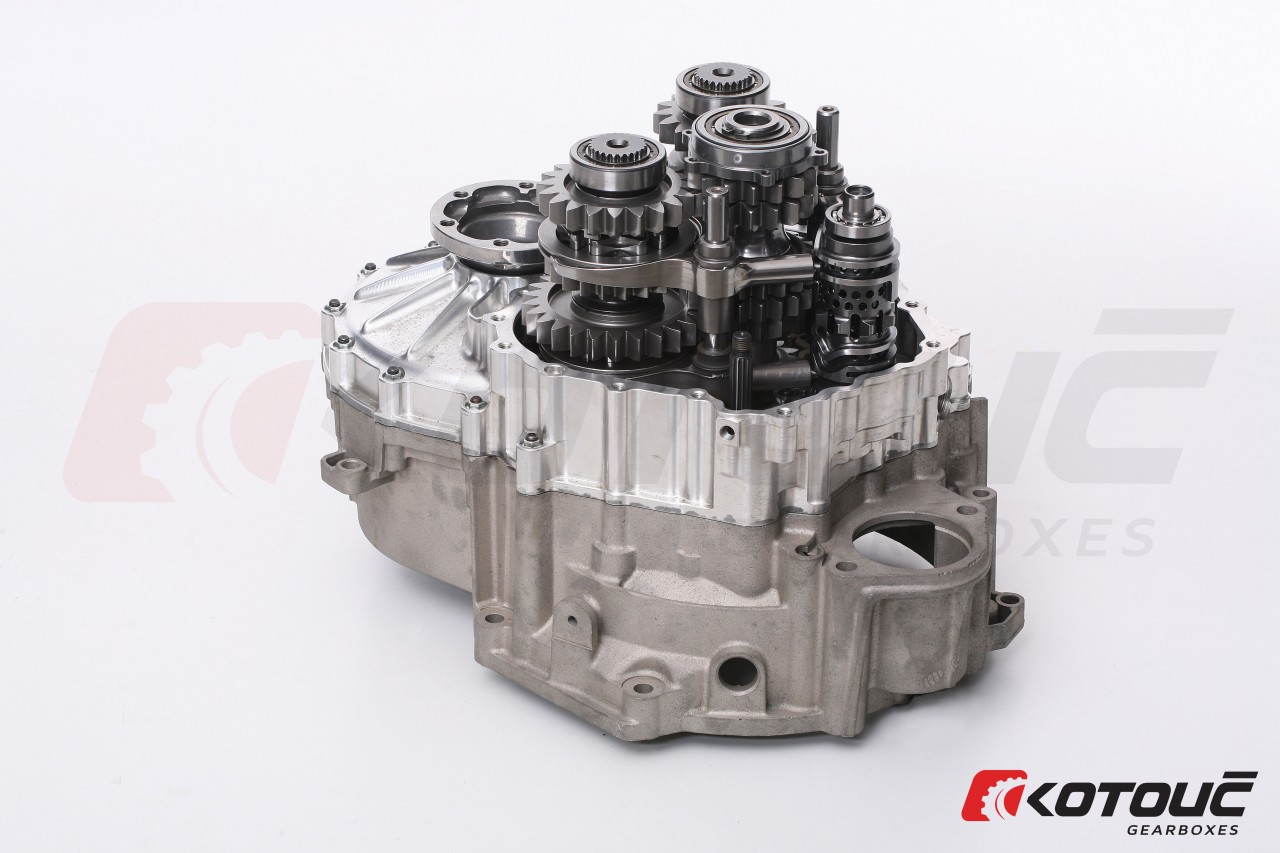

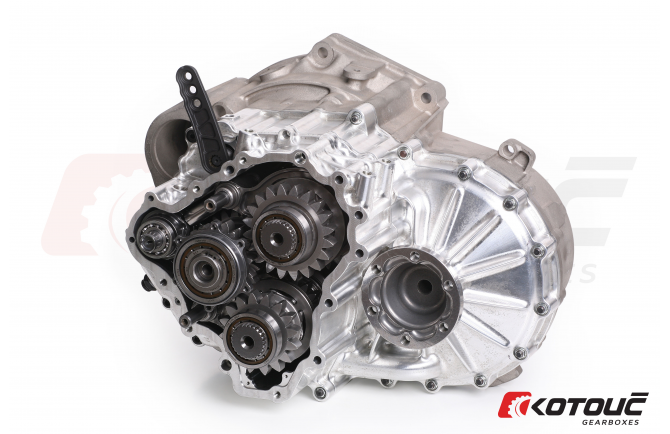

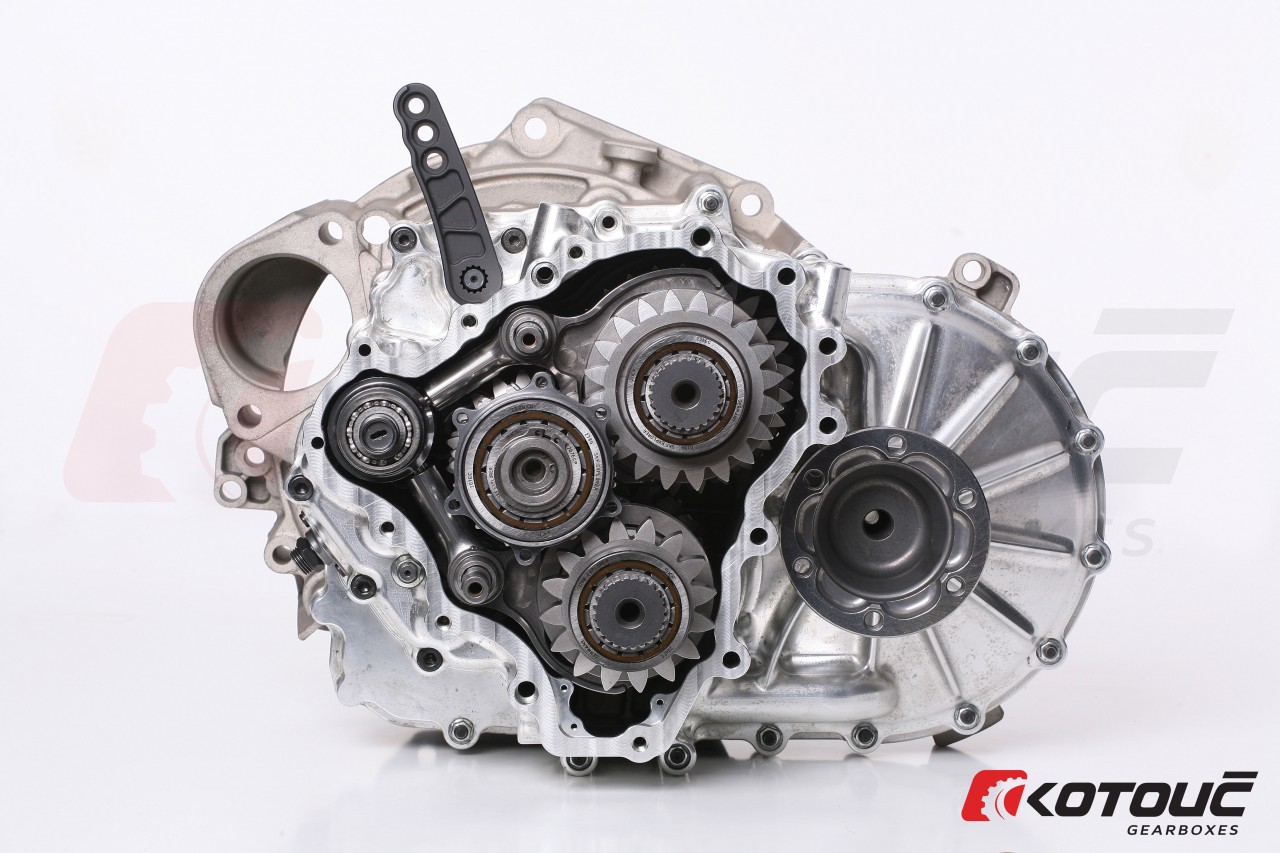

02M / 02Q /0A8 SEQUENTIAL GEARBOX

6 speed - MQ350 replacement

Kit includes

  • Front Limited Slip Differential
  • CV joints - Left + Right
  • Complete Sequential Mechanism
  • Input Shaft
  • Output Shaft
  • CNC Aluminium rear casing
  • 1st – 6th Gears with dog rings
  • Selector Rods
  • Selector Forks
  • Shifting Roller
  • Gear Indicator Sensor
  • Complete Bearings and Needle Roller Bearings set
Contact us

Kit weight

49 Kg

Gearbox type

6 speed Sequential

Torque rating

600 ft lbs / 800 Nm

Our advantages

The 02M / 02Q / 0A8 Sequential Gearbox utilizes the 3 shaft design and is engineered to handle up to 800NM torque.

Application can be to both diesel and petrol engines as various ratios are available. Custom ratios can also be designed.

The original bellhousing is used from either the 2WD or AWD unit that is found with wither the 2.0L 4 cylinder or the 3.2L 6 cylinder motor.

Also possible to install the sequential gearbox as a replacement to the 02A, 02J, 02T, 0A6, DSG VW gearboxes with an installation kit.


Possible applications of this gearbox include:

  • VW Polo, Golf, Scirocco, Bora, Jetta
  • Seat Leon, Toledo, Ibiza
  • KTM XBow
  • Škoda Fabia, Octavia
  • Audi A1, A3, S1, S3, TT

Available for both 2WD and AWD applications

NEW UPRATED CV joints are included!! You can view them here

ISOTROPIC SUPERFINISHING on all parts as standard

Gear ratios available

02M Sequential 4.167 / 3,333 - TKE

GEAR Tooth count GEAR
ratio
output input
1st 28t 11t 2,55
2nd 25t 15t 1,67
3rd 21t 17t 1,24
4th 20t 21t 0,95
5th 22t 23t 0,96
6th 20t 25t 0,80

02M Sequential 4.417 / 3,533 - LONG

GEAR Tooth count GEAR
ratio
output input
1st 28t 11t 2,55
2nd 25t 15t 1,67
3rd 21t 17t 1,24
4th 20t 20t 1,00
5th 23t 22t 1,05
6th 18t 20t 0,80

02M Sequential 4.417 / 3,533 - XBOW

GEAR Tooth count GEAR
ratio
output input
1st 27t 12t 2,25
2nd 25t 15t 1,67
3rd 25t 19t 1,32
4th 24t 22t 1,09
5th 22t 19t 1,16
6th 20t 20t 1,00

02M Sequential 4.417 / 3,533 - KAN

GEAR Tooth count GEAR
ratio
output input
1st 29t 11t 2,64
2nd 25t 13t 1,92
3rd 24t 16t 1,50
4th 22t 18t 1,22
5th 22t 17t 1,29
6th 20t 18t 1,11

02M Sequential 4.167 / 3,333 - KANx

GEAR Tooth count GEAR
ratio
output input
1st 29t 11t 2,64
2nd 25t 13t 1,92
3rd 24t 16t 1,50
4th 22t 18t 1,22
5th 22t 17t 1,29
6th 20t 18t 1,11

02M Sequential 5,182 / 3,800 - GTX

GEAR Tooth count GEAR
ratio
output input
1st 30t 12t 2,50
2nd 26t 14t 1,86
3rd 25t 17t 1,47
4th 24t 20t 1,20
5th 22t 16t 1,38
6th 20t 17t 1,18

02M Sequential 4.417 / 3,333 - DIESEL

GEAR Tooth count GEAR
ratio
output input
1st 26t 12t 2,17
2nd 24t 15t 1,60
3rd 20t 16t 1,25
4th 20t 20t 1,00
5th 16t 15t 1,07
6th 18t 21t 0,86
